Scm Record 240

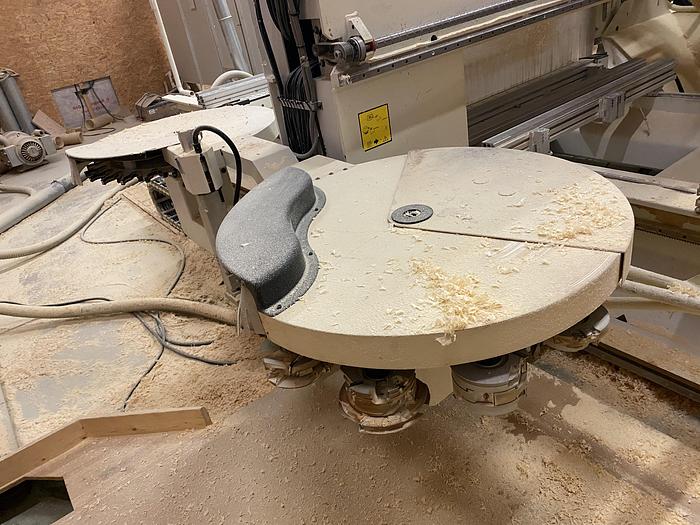

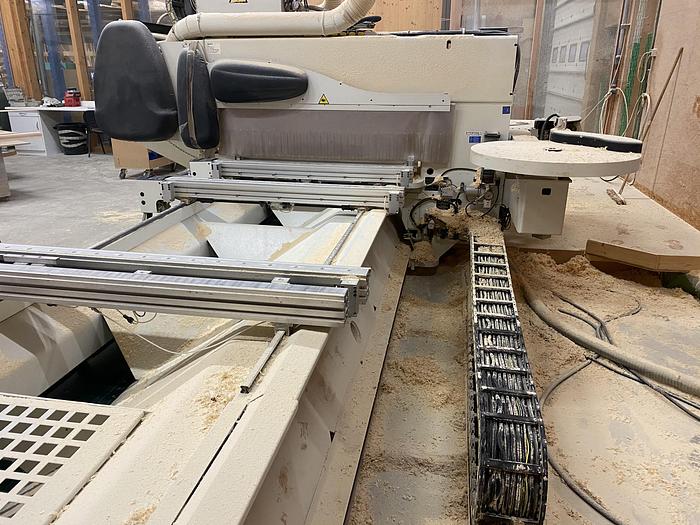

Xilog Plus control (2015 update) Working field in X axis 6000 mm Working field in Y axis 1885 mm Working stroke in Z axis 340 mm N ° 2 work fields Bar worktop N ° 8 manually adjustable bars for the suction cups support N ° 2 manually adjustable suction cups for each bar with vacuum seal for fixing the panel during the processing Pliers for the construction of windows and / or doors N ° 1 vertical electrospindle with C Vector axis, with automatic tool change, 11 KW, HSK cones - new pantograph 2017 Automatic tool change system with 10 positions - positioned on the machine head Automatic tool change system with 24 24 positions - on the back of the machine N ° 1 horizontal double output electrospindle Boring head with 18 vertical and horizontal spindles Independent blade for grooving Protection and safety system with Bumper on the operating head Perimeter protection grids Chip evacuation system with motorized belt Air conditioning system for cooling and cleaning the machine control Vacuum pump
