2005 Biesse Rover 24 L

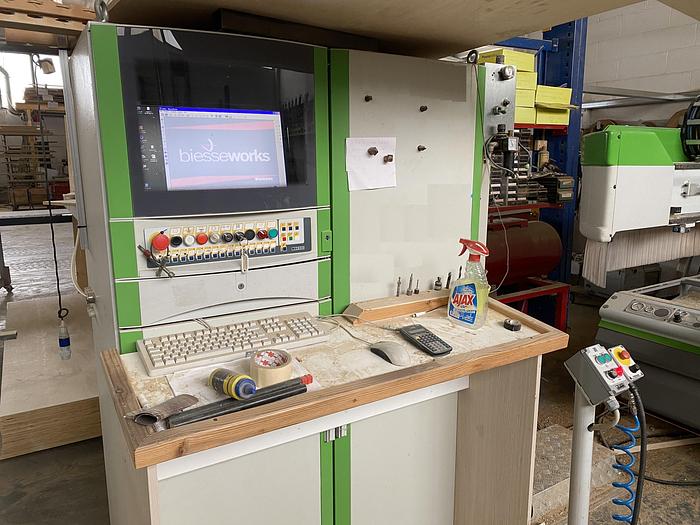

Numerical Control Nc 1000 with Biesse Works Software Working field in X axis 4500 mm Working field in Y axis 1380 mm Working stroke in Z axis 155 mm N ° 2 work fields Bar worktop 8 bars electronically adjustable by C.N. for the suction cup support with work quota display 6 pneumatic bakelite bars for lifting the panel N ° 3 suction cups electronically adjustable by C.N. for each bar with vacuum seal for panel fixing during processing N ° 1 vertical electrospindle with C Vector axis, with automatic tool change N ° 1 vertical electrospindle, with automatic tool change Automatic tool change system with 14 positions positioned on the rear of the machine Drilling head with 30 spindles arranged as follows: - N ° 12 vertical in X axis - N ° 10 vertical in Y axis - N ° 6 horizontal in X axis - N ° 2 horizontal in Y axis Front protection and safety system with carpets Perimeter protection grids Chip evacuation system with motorized belt Automatic lubrication system Air conditioning system for cooling and cleaning the machine control 110 m3 / h vacuum pump
