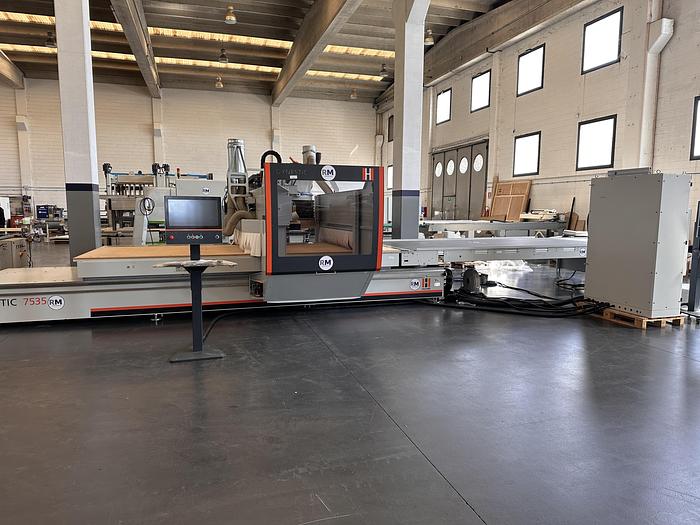

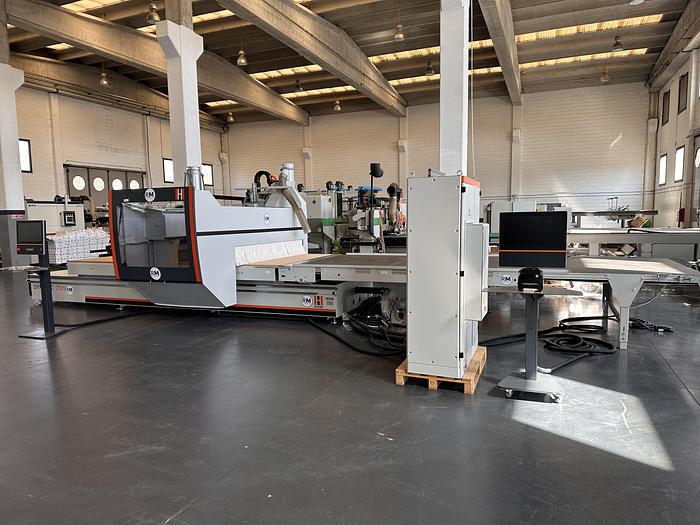

2022 Holzher Dynestic 7535

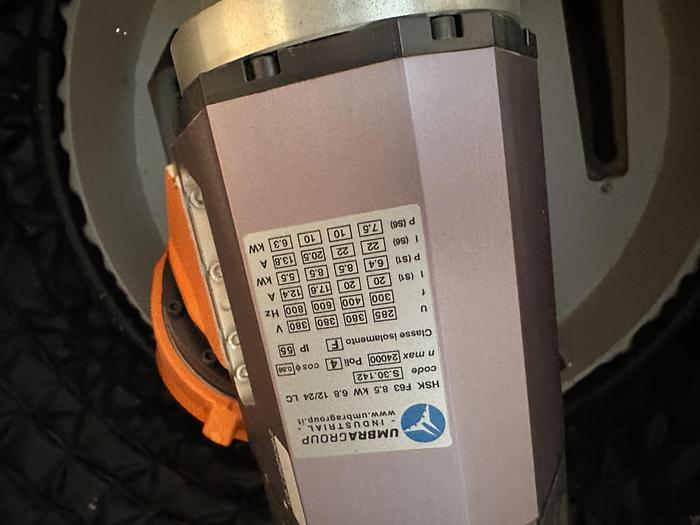

Numerical Control with Campus Version 7 Plus CAD/CAM software Software License with USB High Speed Network Server for Office TouchLabel PRO TouchScreen Monitor with Label Printer Working range on X-axis mm 4600 Working range on Y axis mm 2200 Working stroke in Z axis mm 565 FT nesting full plane worktable Laser pointer for suction cup positioning or panel contour exploration Software controlled 16-station multi-circuit vacuum system Base plate for suction cups Worktop cleaning blower No. 1 5-axis electrospindle, power 10 kW, 0 - 24000 rpm, liquid cooling Automatic tool changer with 18 positions, HSK-F 63 type cones Drilling head 7881 with 24 spindles arranged as follows: - No. 11 vertical spindles on the X axis; - No. 6 vertical spindles on Y axis; - No. 4 horizontal spindles on the X axis; - No. 2 horizontal spindles on Y axis; - No. 1 integrated blade group on X axis for cuts and grooves - diam. 125 mm Controlled unloading pusher on mobile upright Automatic unloading system with motorized carpet Barcode printing labeller Protection and safety system with photocells and perimeter nets Automatic lubrication system Air conditioning system for the electrical panel No. 2 vacuum pumps, one of 250 and one of 500 m3/h TECHNICAL DETAILS TO BE CHECKED
