2010 IMA BIMA CUTTING CENTER

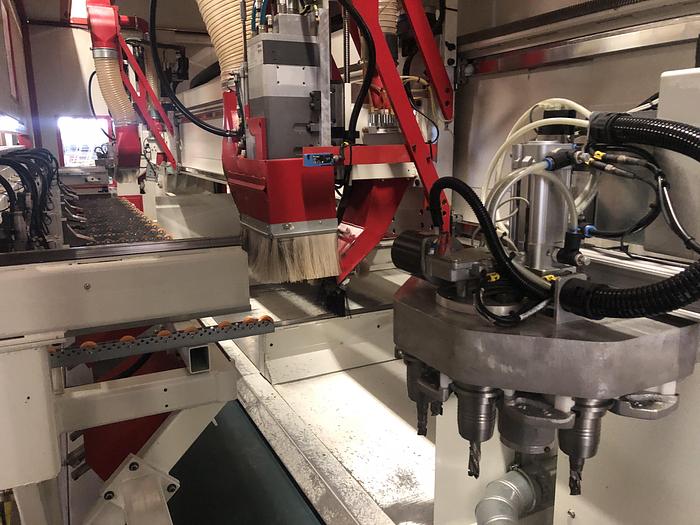

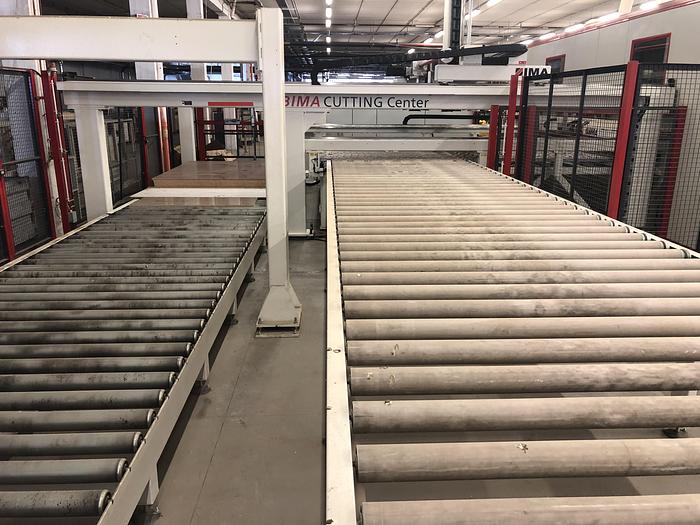

Work center for cutting wooden panels with automatic loading and unloading system Numerical control IMATRONIC NT 231 Ima Cutting Center Importfilter software package Control for label printer - printer type Datamax DMX-I-4208 IMAWOP graphics 17 "monitor Air conditioner on electrical cabinet Automatic NC lubrication Sirio type 560/210 loading magazine panel dimensions 5600x2100 mm sliding speed 100 m / min 5 cycles minute lifting speed from 0 to 25 m / min rear lifting table motorized preload roller conveyors with suction cups loading system X \ Y axis travel speed 85 mt \ min pusher with n. 6 pneumatic grippers panel dimensions min 300 x 600 x 18 mm panel dimensions max mm 2100 x 4200 x 60 panel weight max kg 250 n. 2 pantograph heads KW 11 tool type HSK F 63 with liquid cooling pantographs with n. 2 tool changers with 8 + 8 positions chip evacuation system with motorized belt Wandres panel cleaning system for cutting center type 130/600 with tornado blowing and integrated suction channel panel unloading system from the cutting center by means of a table with automatic suction cups panel dimensions length 240 - 3000 mm \ width 120 - 1400 mm \ thickness 18 - 50 mm translator of all straps
