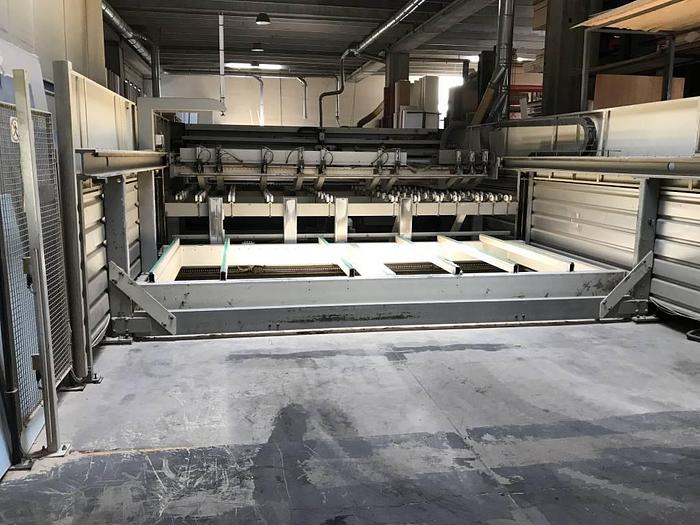

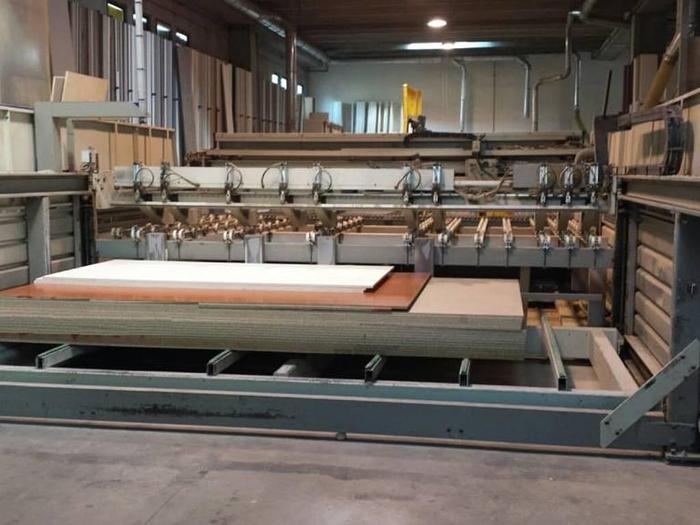

2005 Selco WNT 600

Numerical Control based on PC - NC 500 Cutting length 4400 mm Cutting width mm 2200 Cutting height 120 mm Blade protrusion 132 mm Automatic panel loading via rear lifting table Double automatic aligner with pneumatic cylinders N ° 3 mobile front tables in Bakelite with air curtain system for unloading the panels N ° 1 fixed front table in Bakelite with air veil system for unloading the panels Main blade KW 18.5 (opt.24.5) Scoring blade, KW 2,2 Blade carriage speed 1-150 mt / min Pusher carriage speed 60 mt / min. Pusher carriage with 10 grippers
