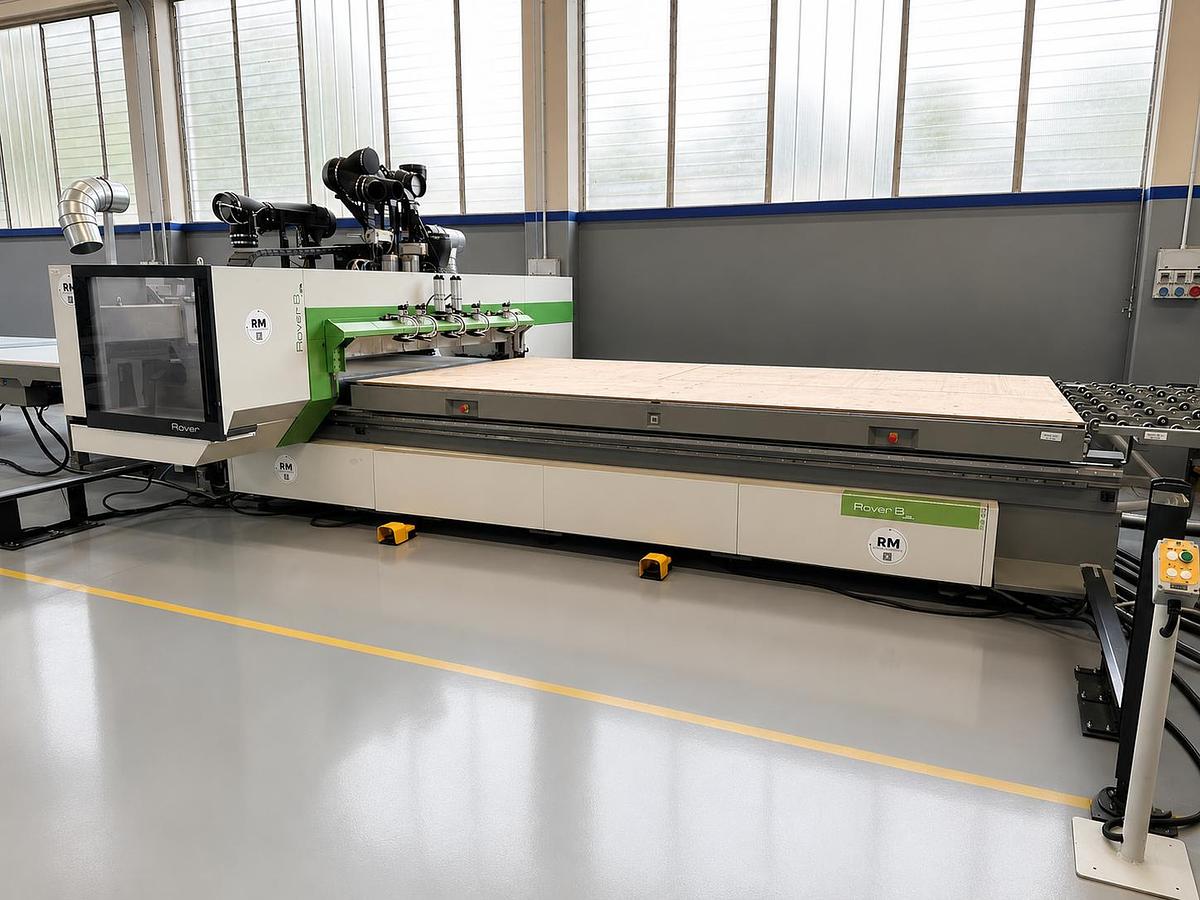

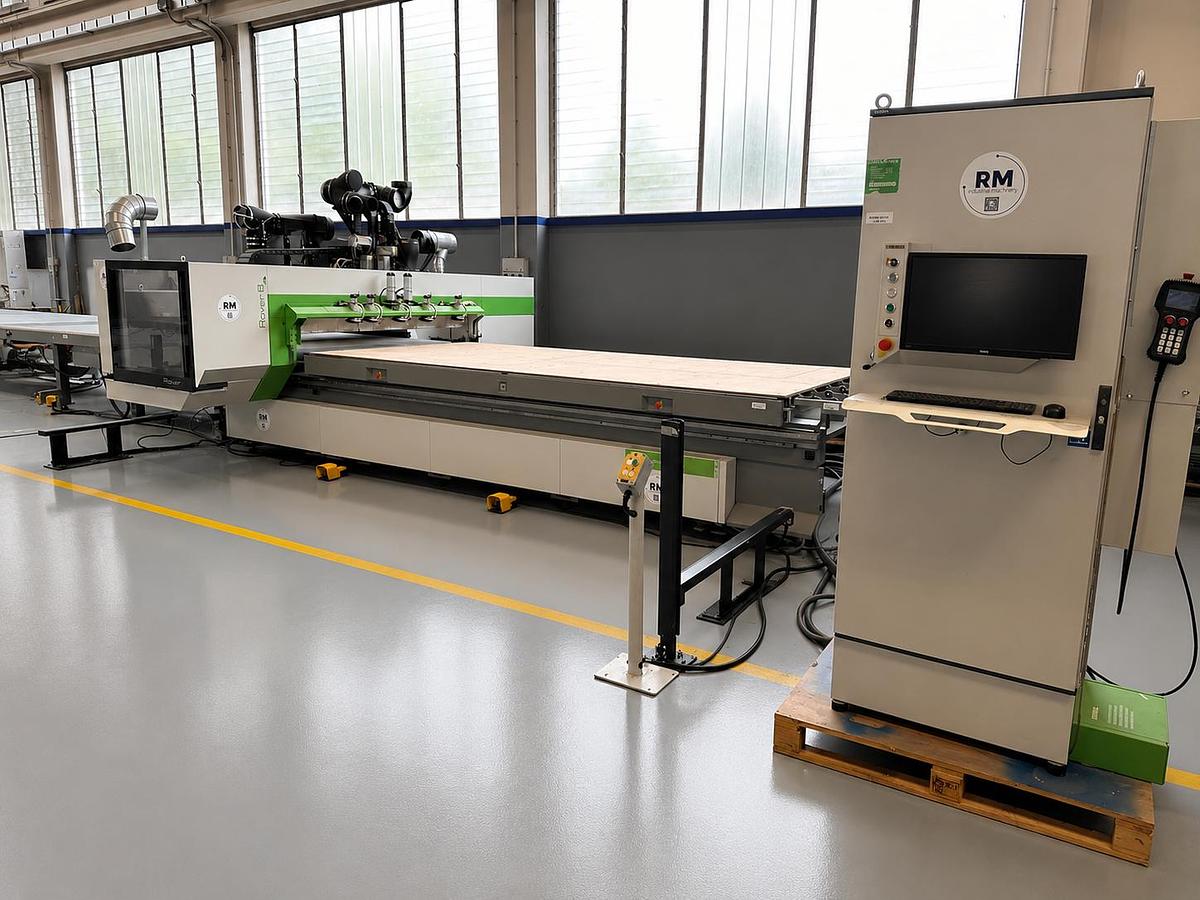

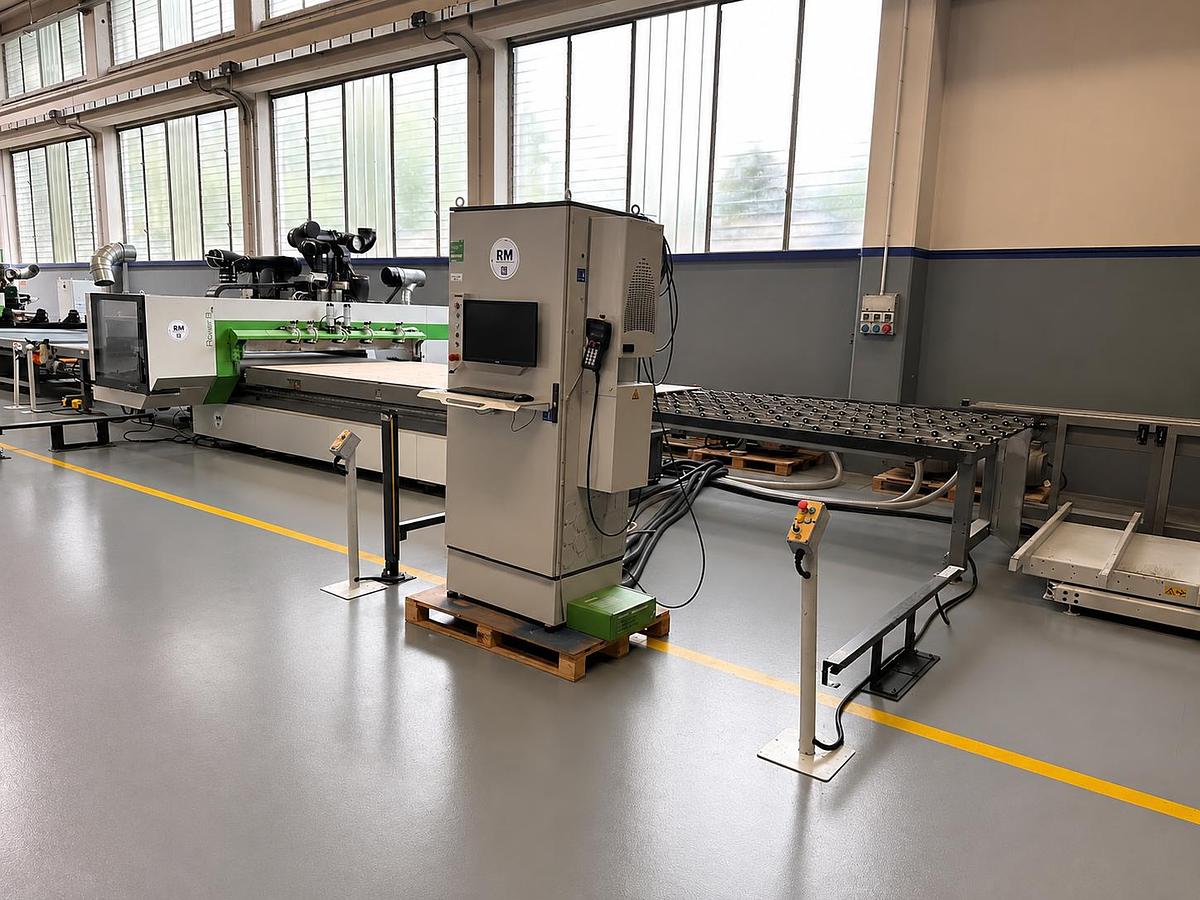

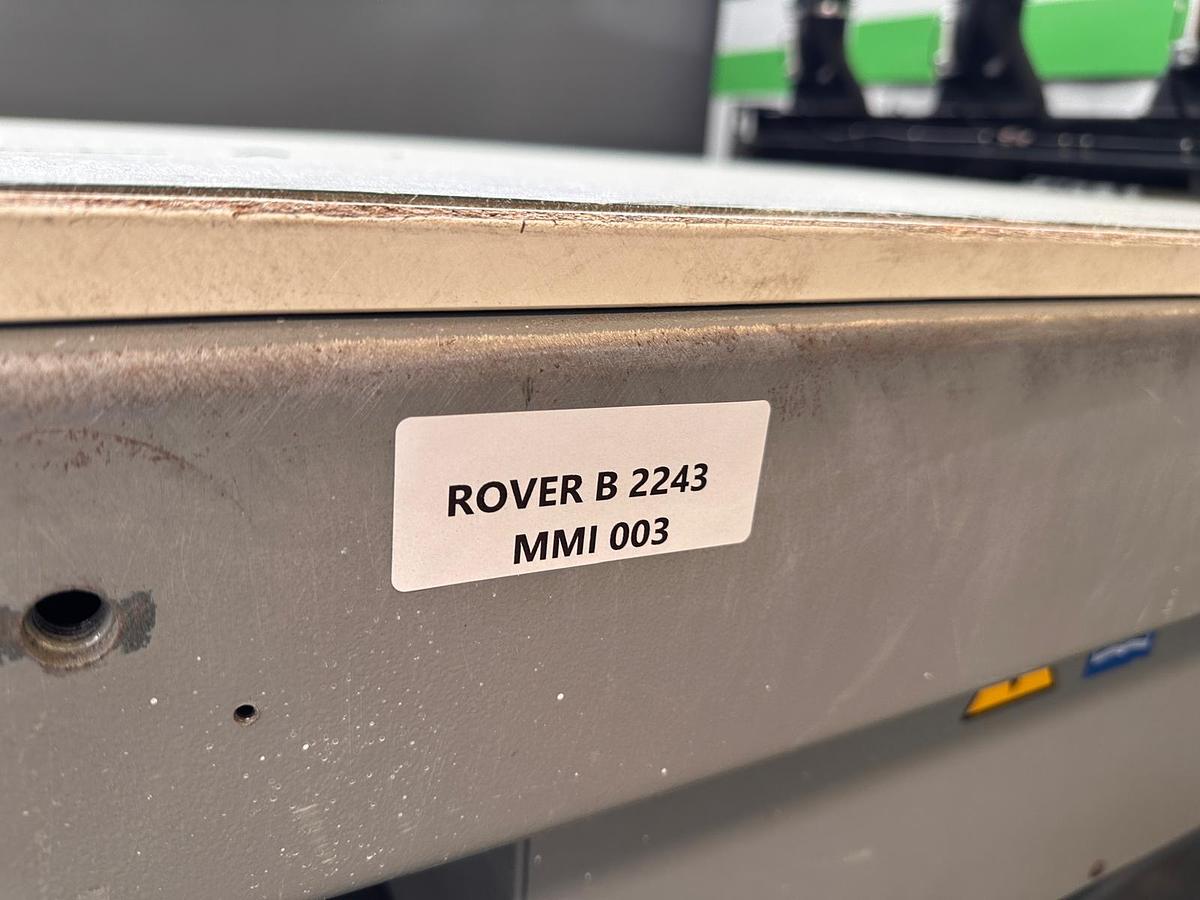

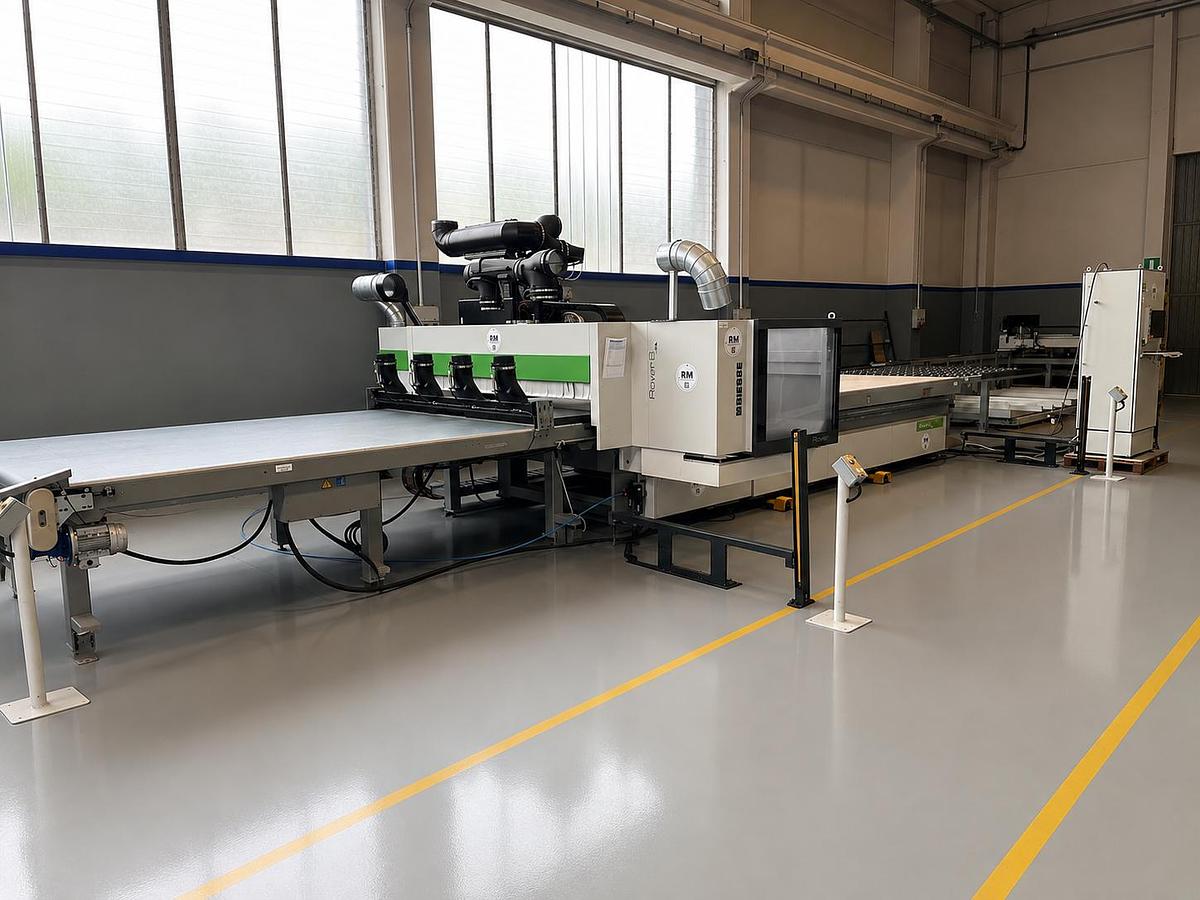

2018 Biesse Rover B 2243 GFT

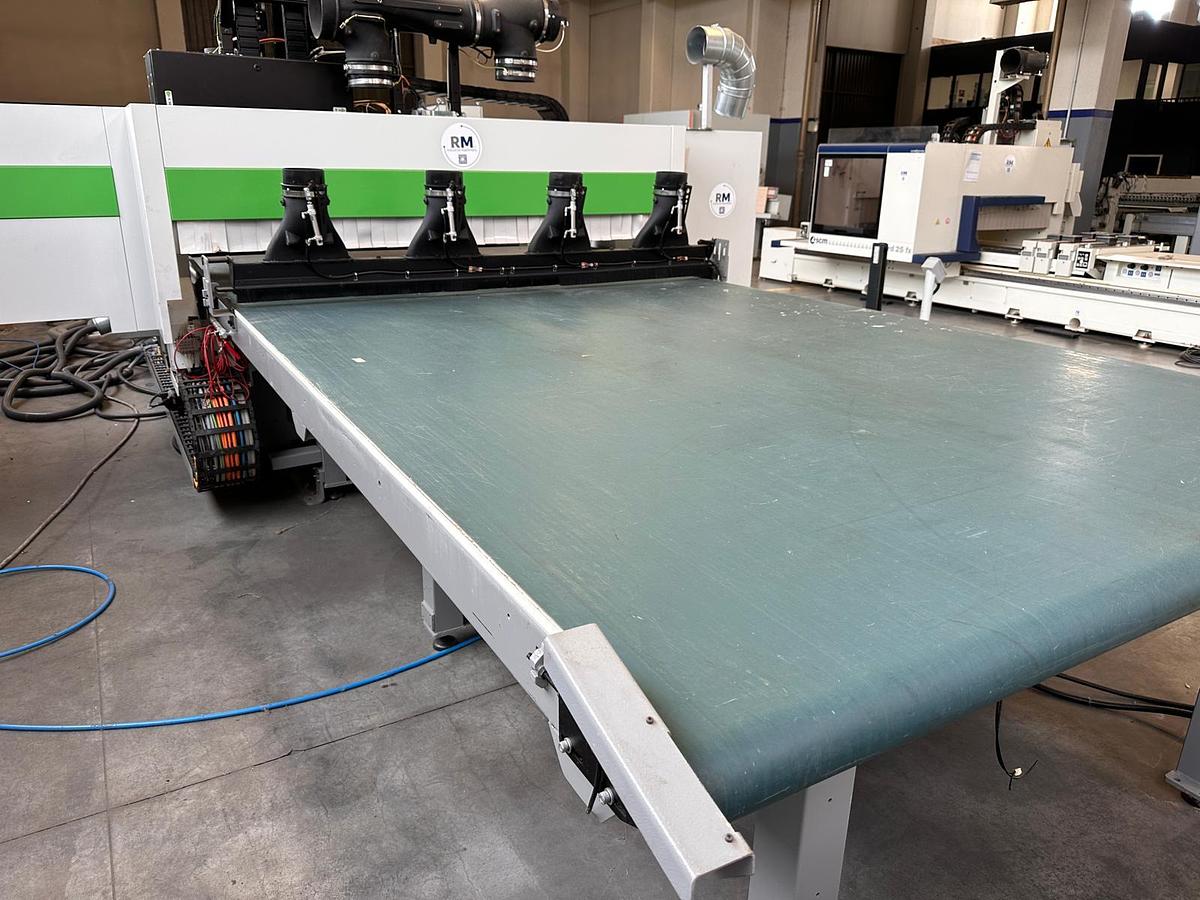

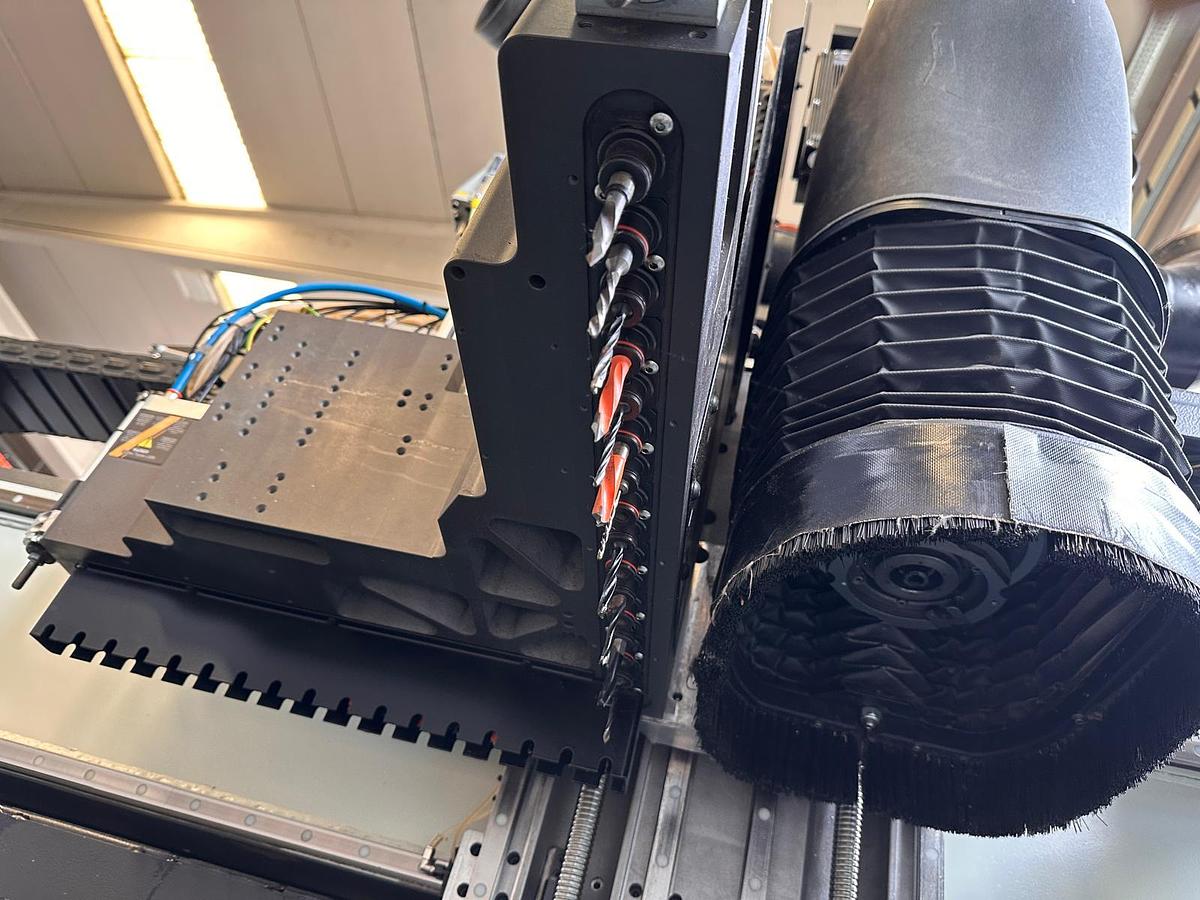

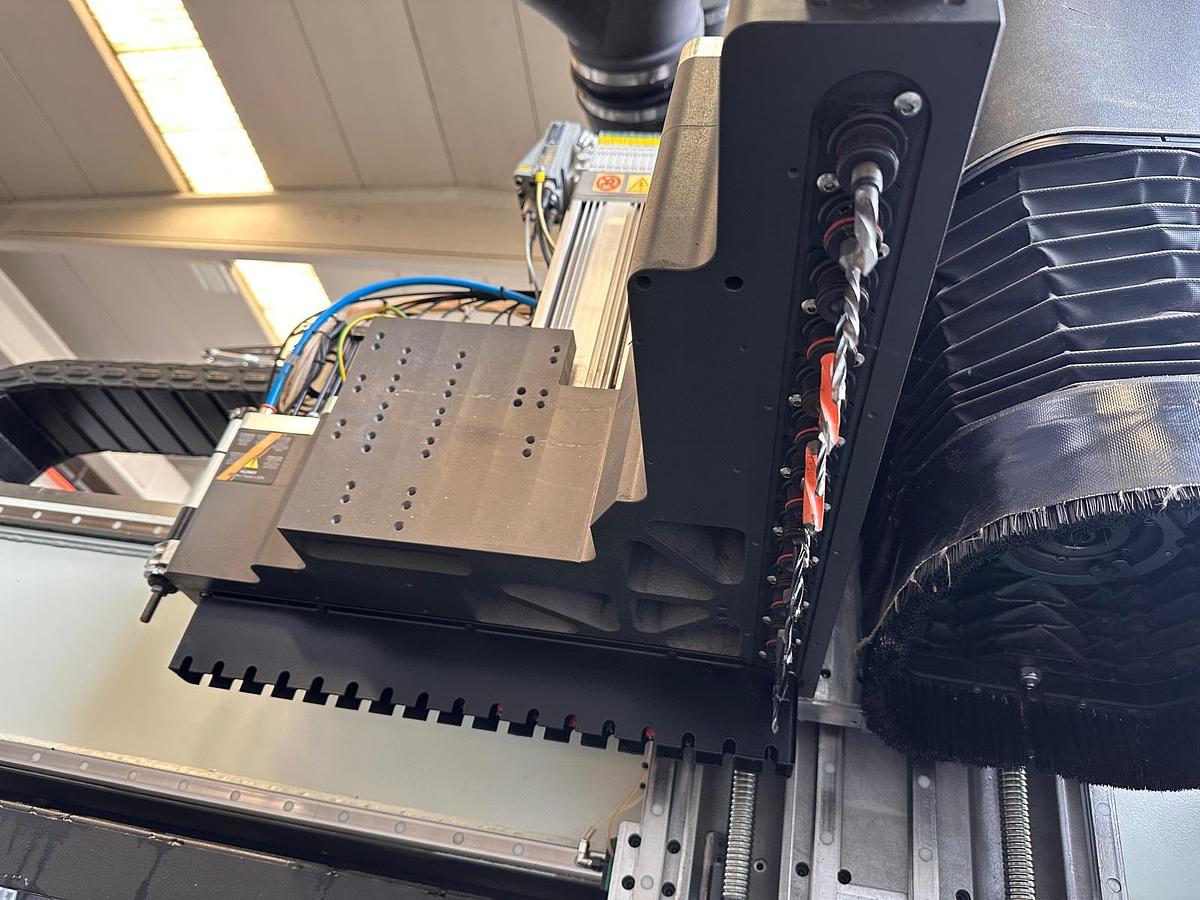

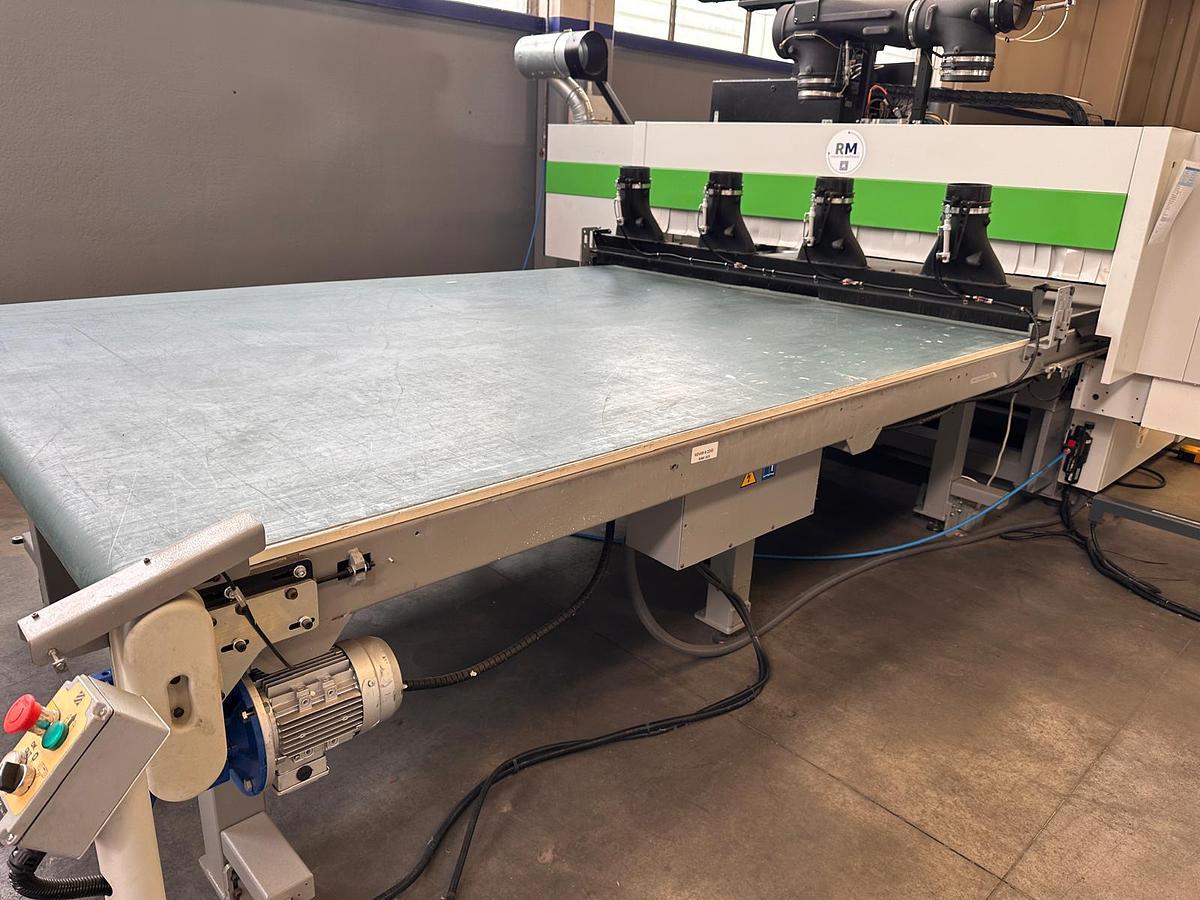

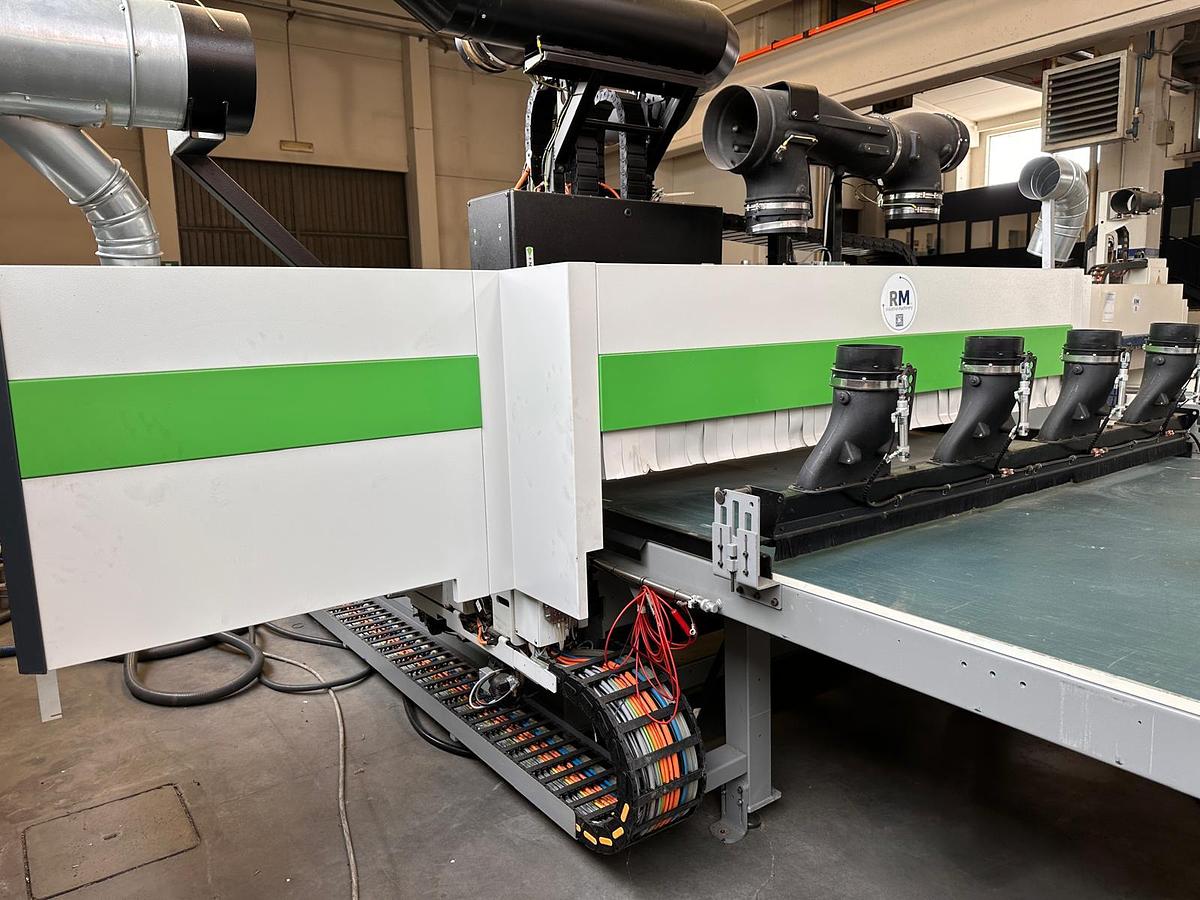

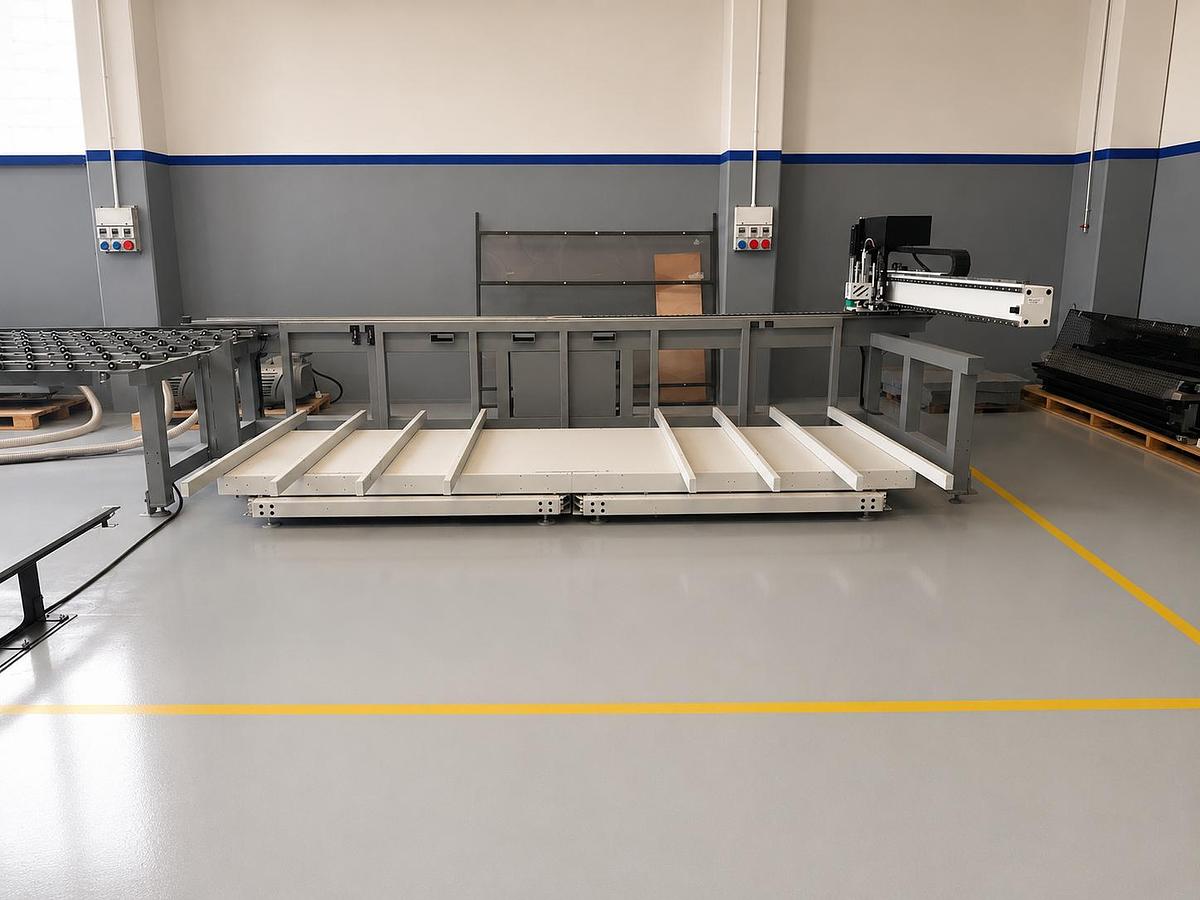

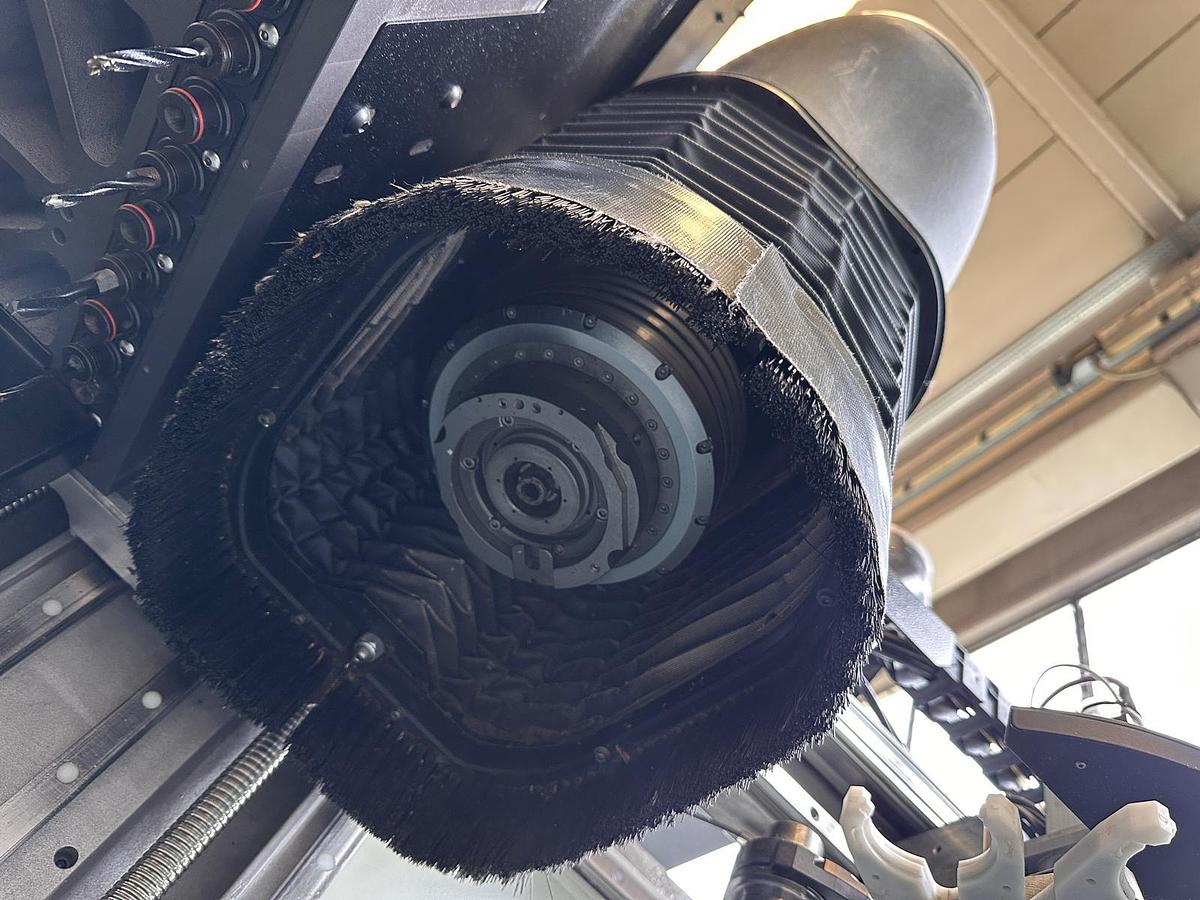

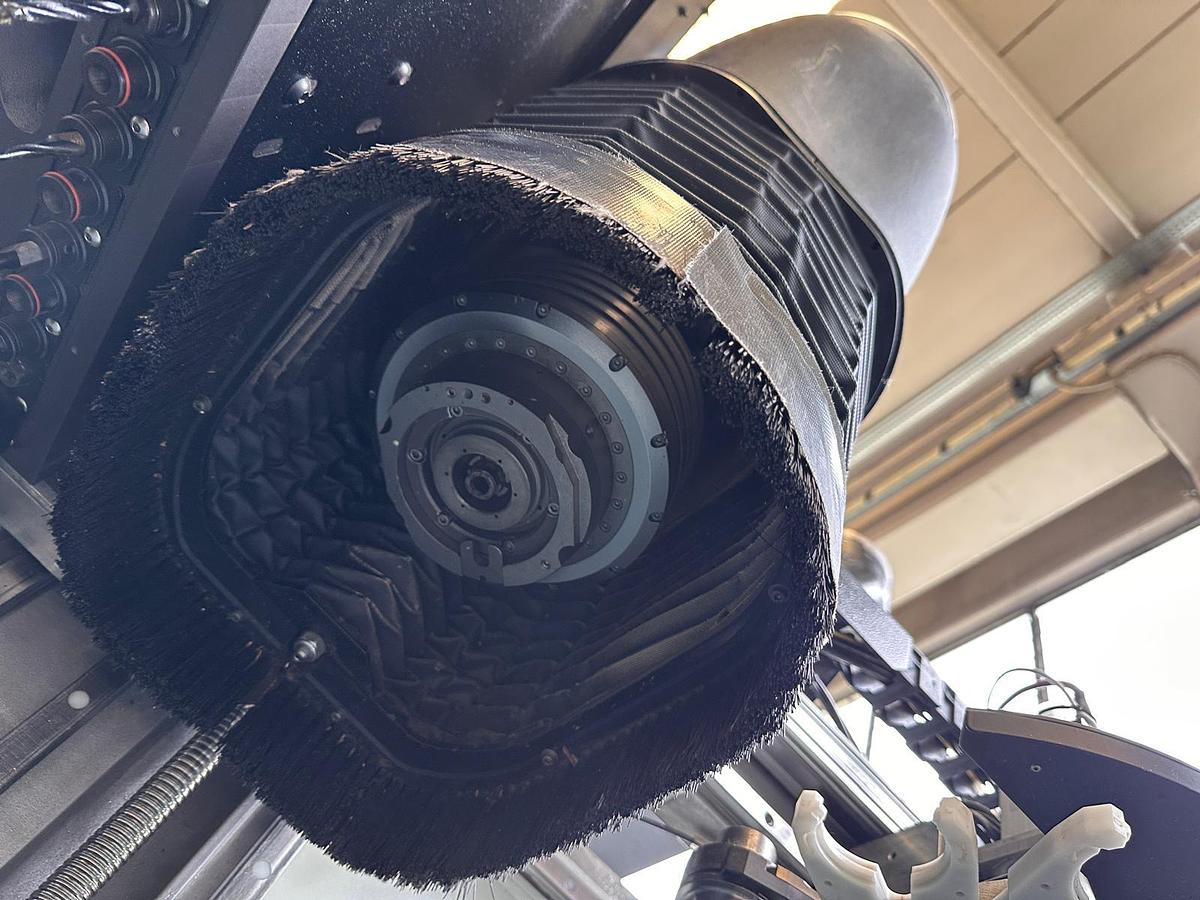

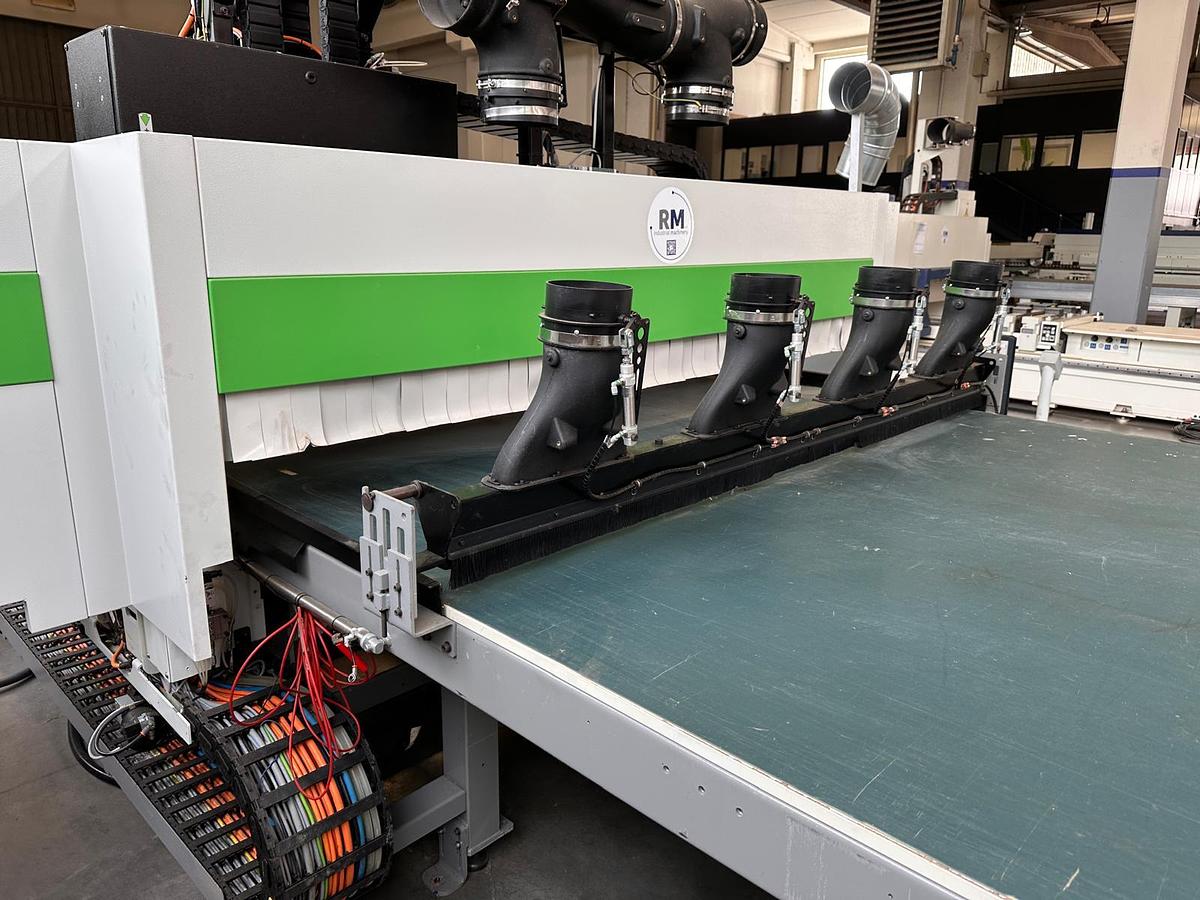

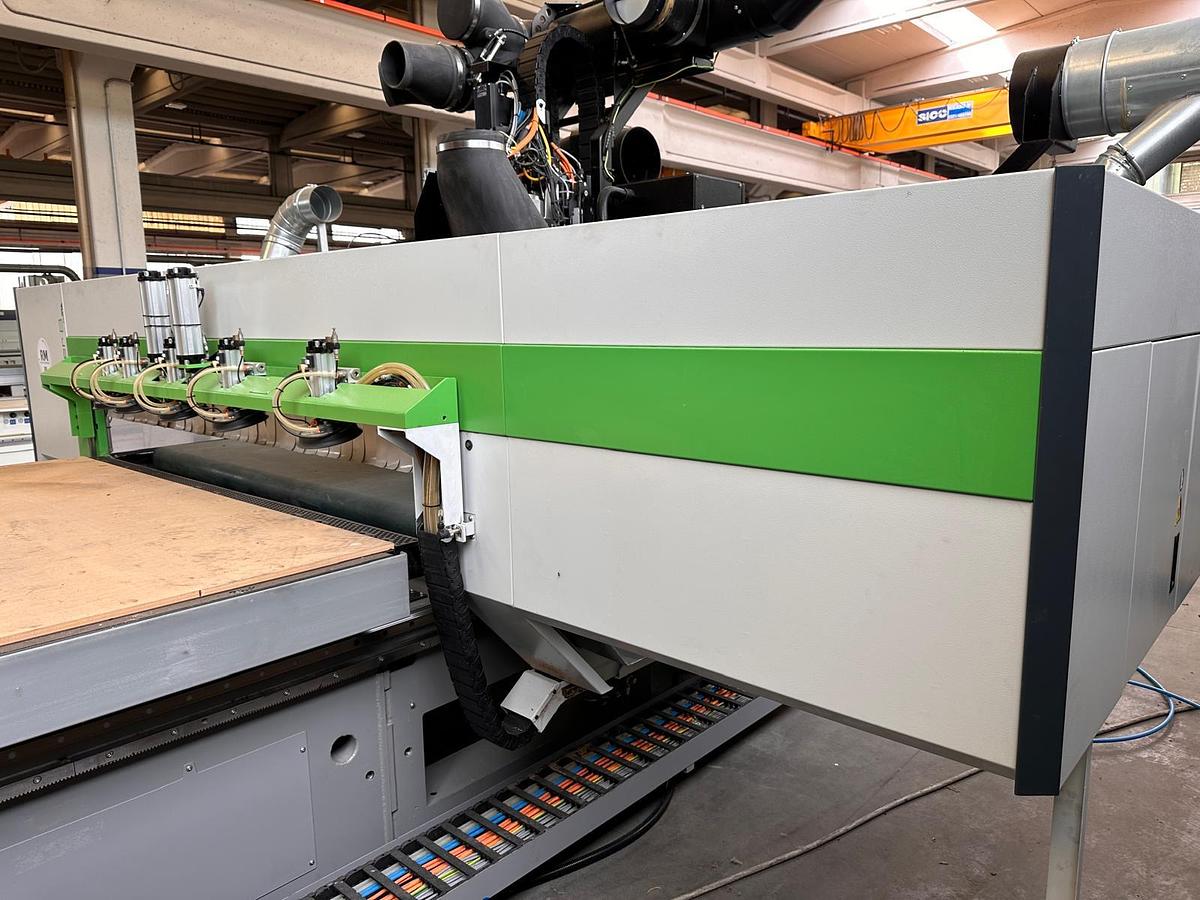

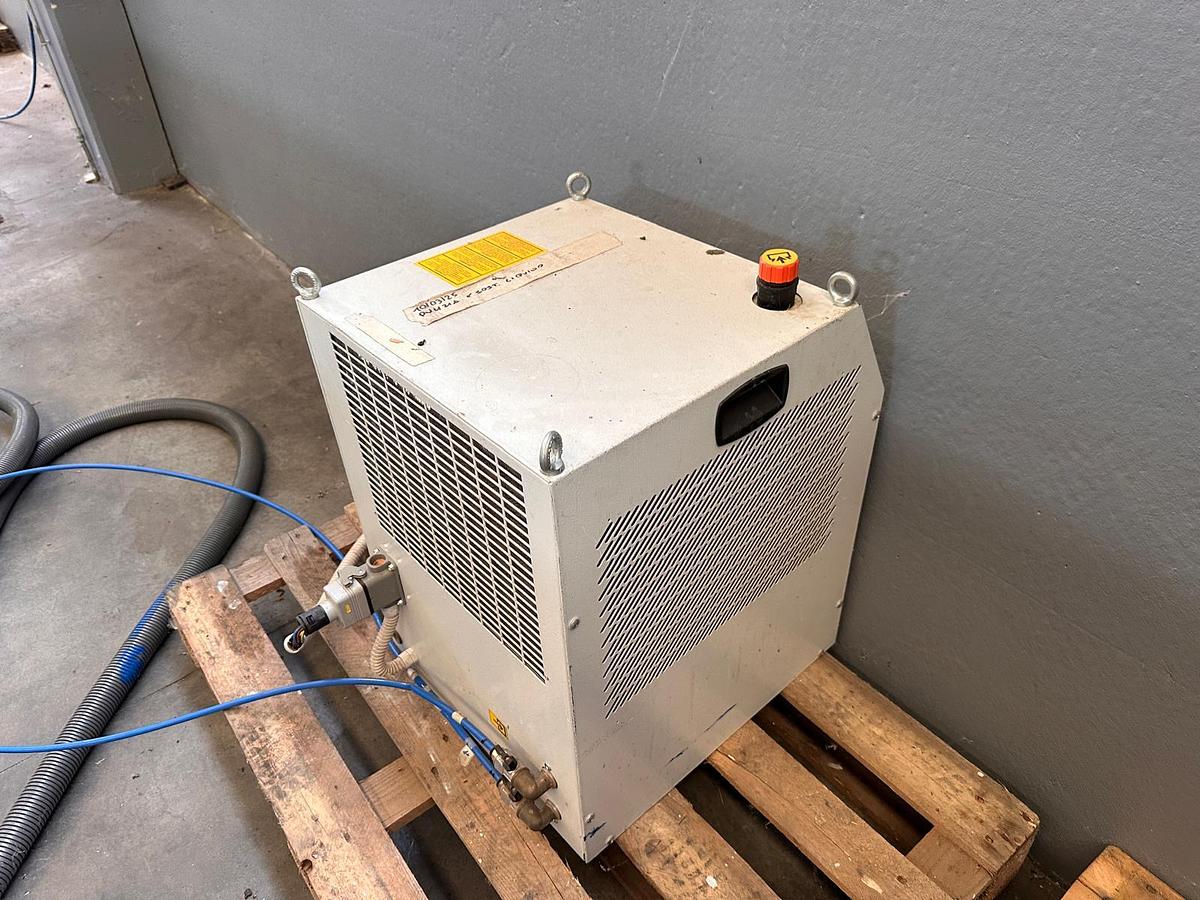

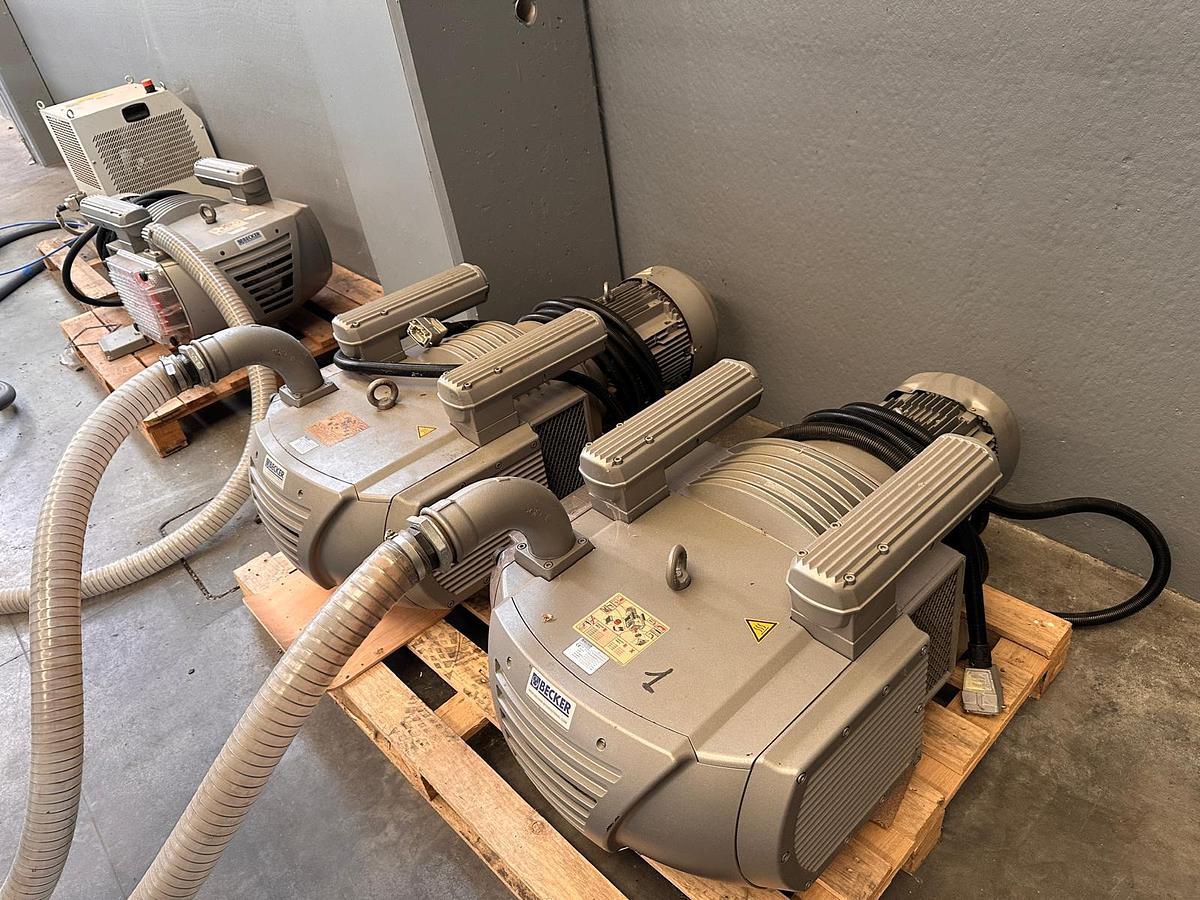

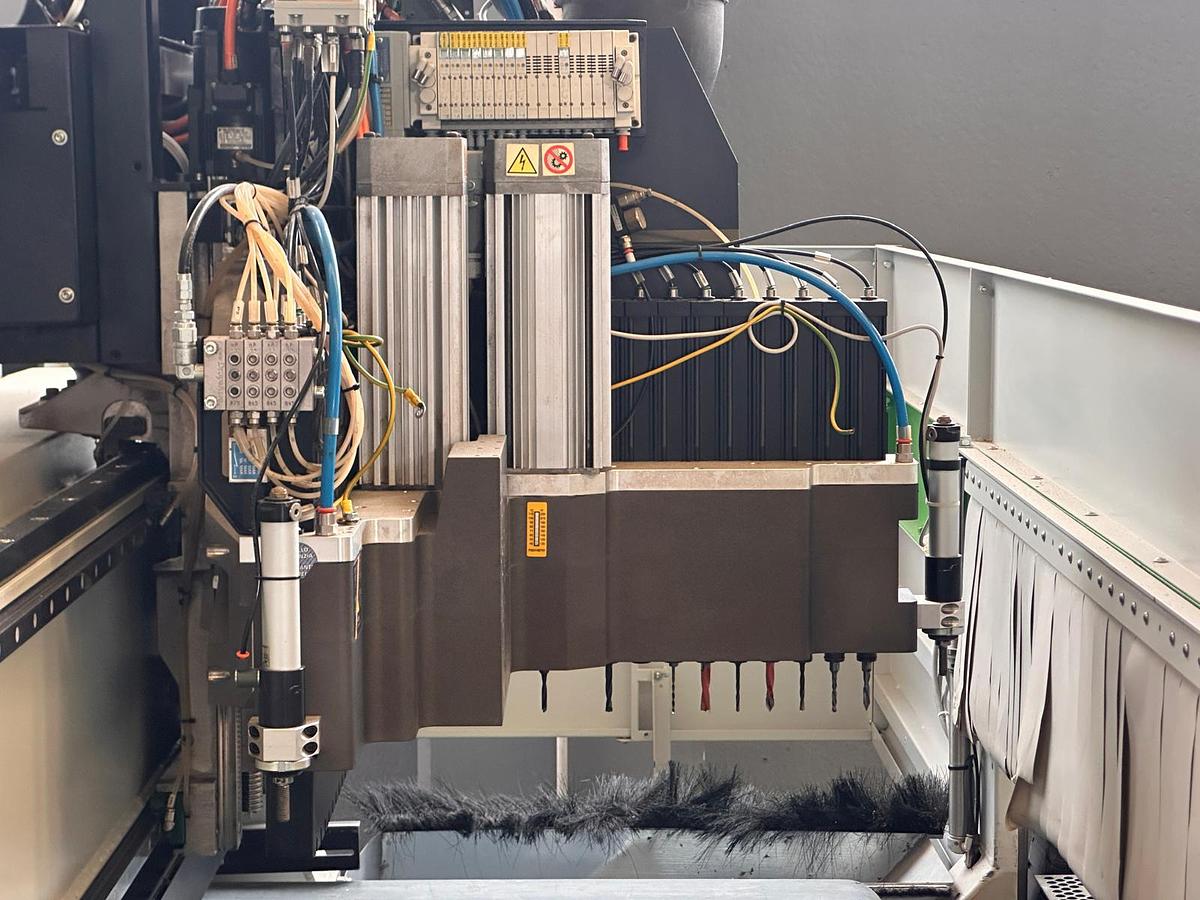

Numerical Control B Solid Working field in X axis 4300 mm Working field in Y axis 2205 mm FT nesting full plane worktable Automatic loading / unloading system with NC positioning (Sweeping Arm + Loading suction cups) Automatic loading system with side lifting table with scissor lift Air curtain blower 20-zone multizone vacuum system 1 x 19.2 kW (25.7 HP) liquid-cooled vertical electrospindle, with automatic tool change, HSK F63 360 ° interpolating operator device - C axis Control unit for cooling the coolant Presetter for tool length measurement Automatic tool change system with 8 positions - positioned on the machine operating head BHC 32 boring head with independent spindles arranged as follows: - N ° 15 vertical in X axis - N ° 17 vertical in Y axis Automatic unloading system with motorized belt with suction system Front protection and safety system with carpets and perimeter nets Automatic lubrication system Air conditioning system for the electrical panel N. 3 vacuum pumps of 300 mc / h with cams
