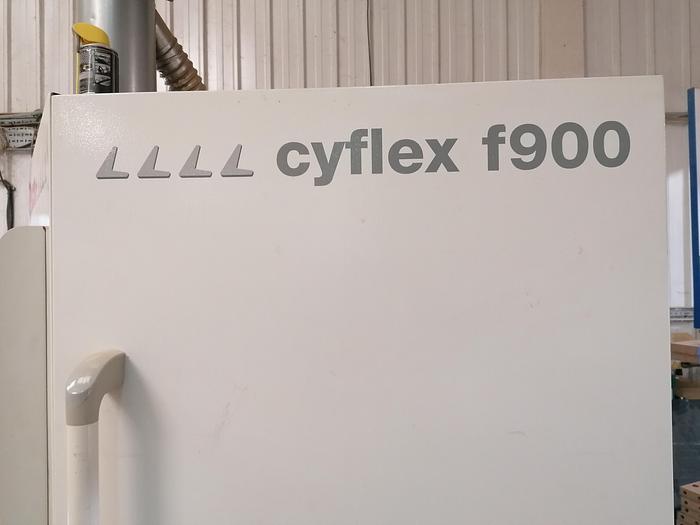

2016 Scm Cyflex f900

Numerical Control with Xilog Software Working field in X axis 3050 mm Working range in Y axis 800 mm Work field in the Z axis 60 mm Max X axis speed 25 mt / min Y axis max speed 28 mt / min Air curtain worktop Drilling head with 12 spindles arranged as follows: - N ° 5 vertical in X axis - N ° 3 vertical in Y axis - N ° 2 horizontal in X axis - N ° 2 horizontal in Y axis Spindle rotation motor power 2,2 Kw N ° 1 blade integrated in X axis diameter 120 mm Lateral supports for machining long pieces Centralized lubrication Installed power KVA 5 Weight 1350 Kg
