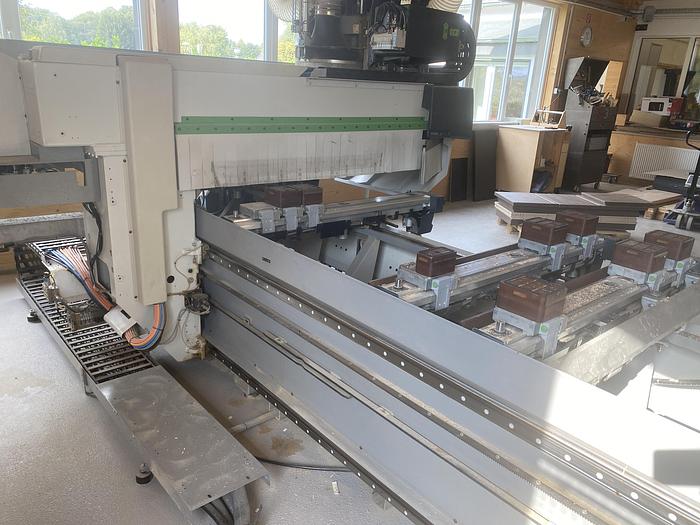

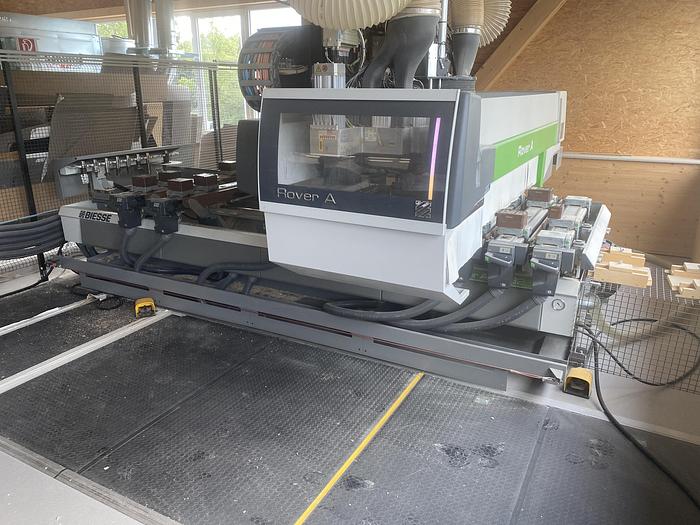

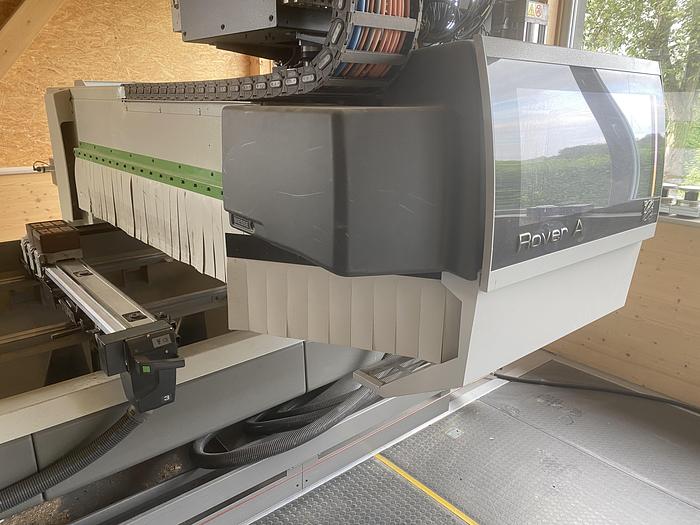

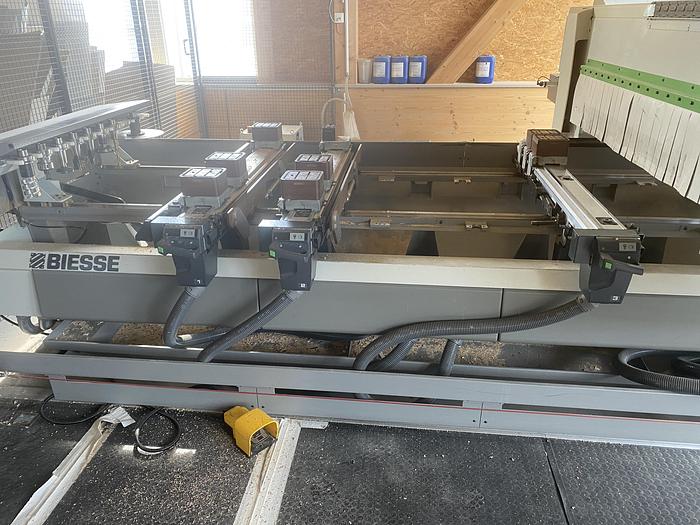

2013 Biesse Rover A 1332

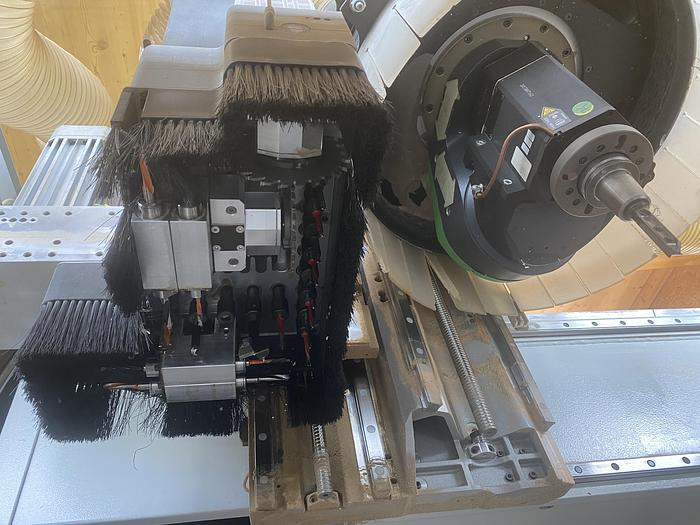

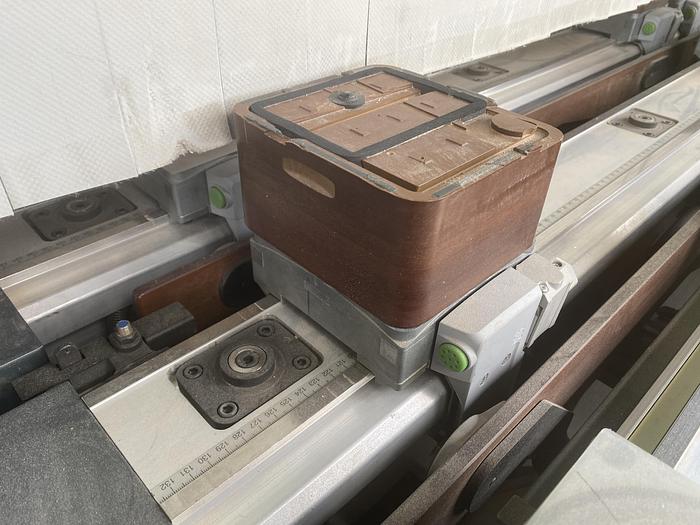

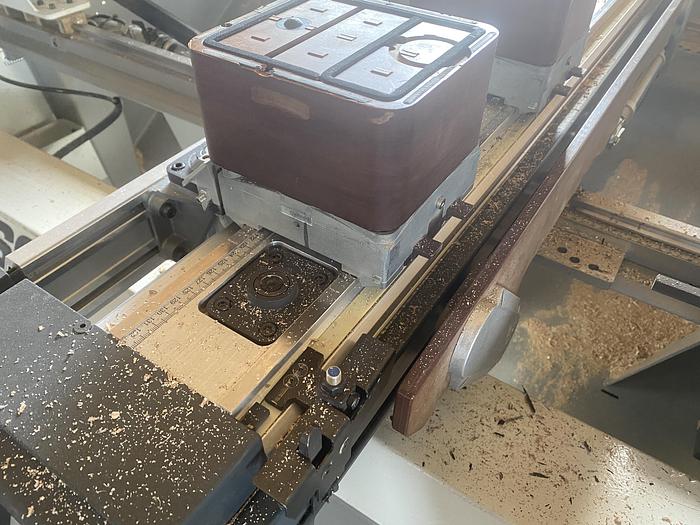

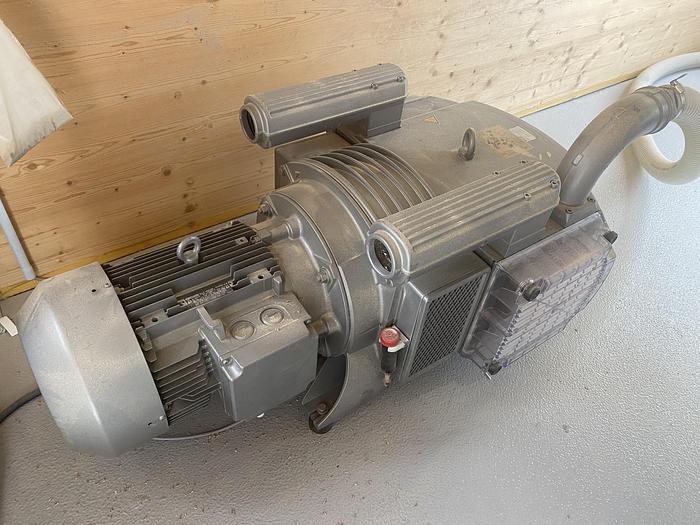

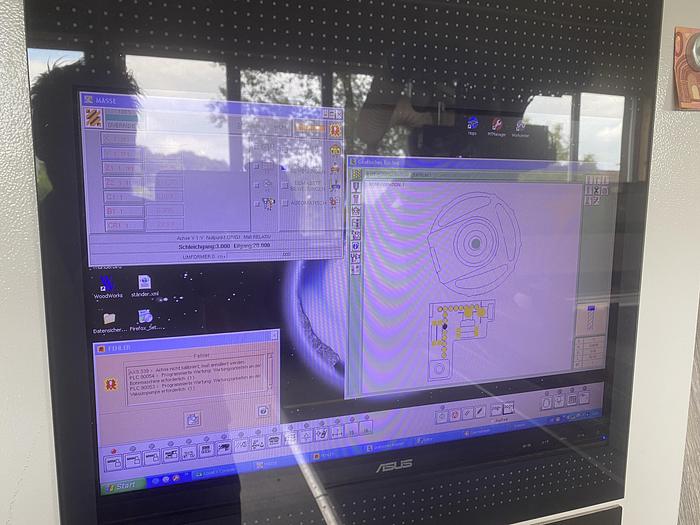

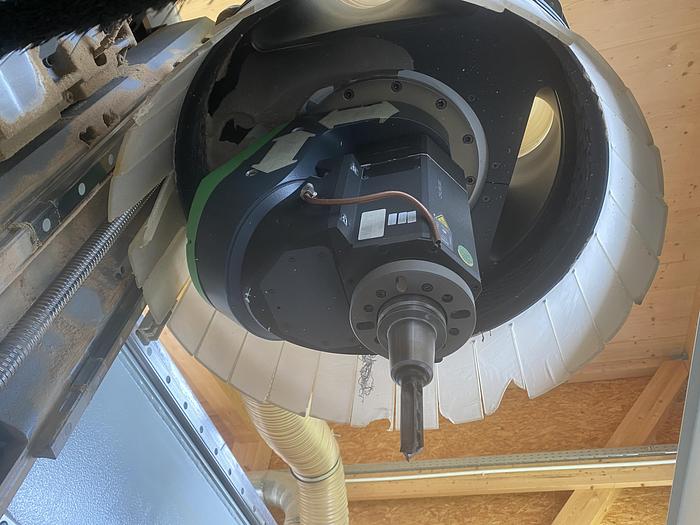

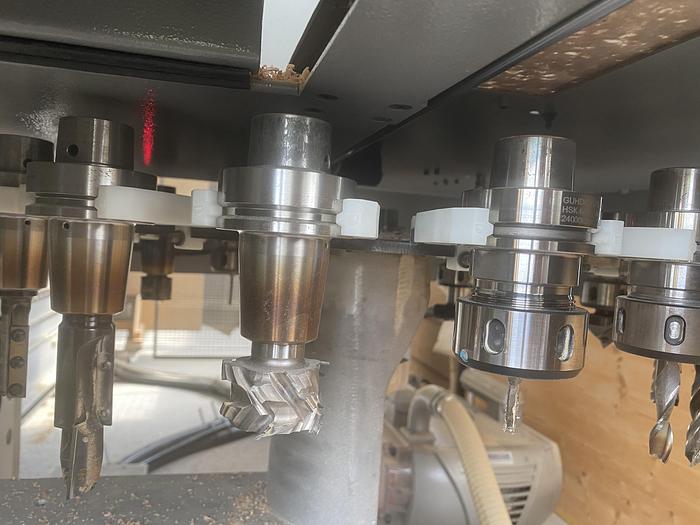

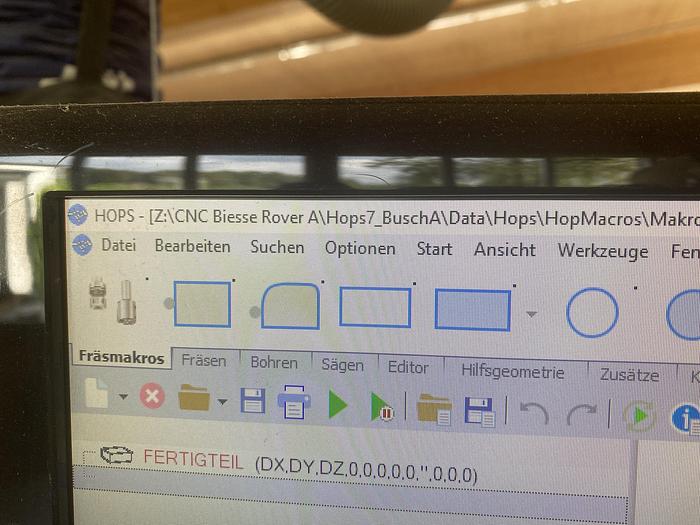

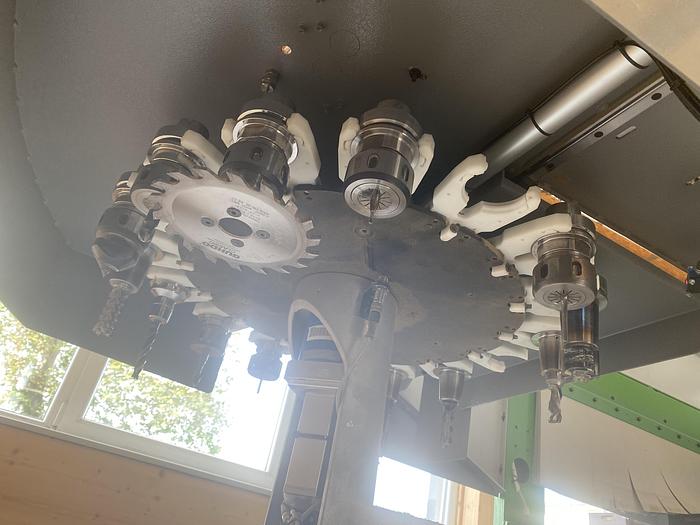

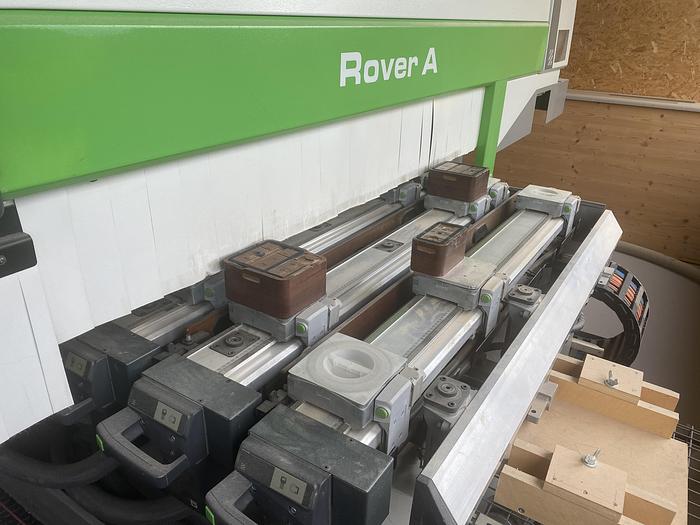

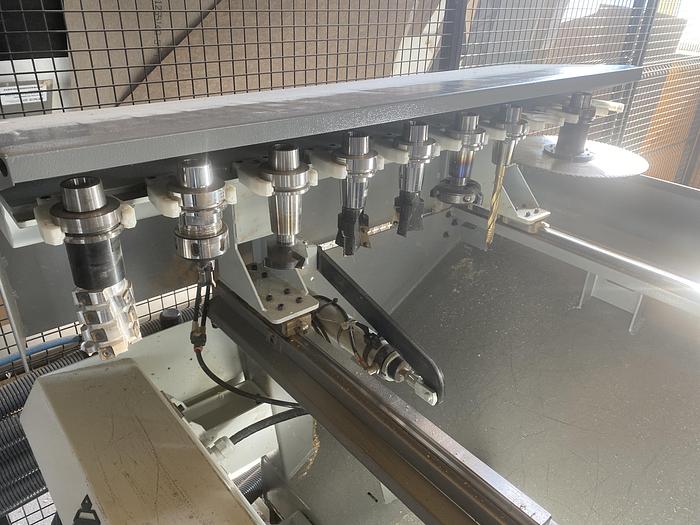

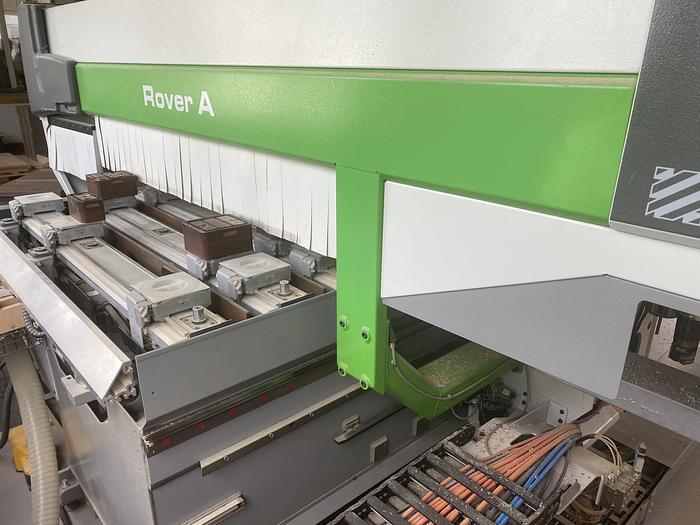

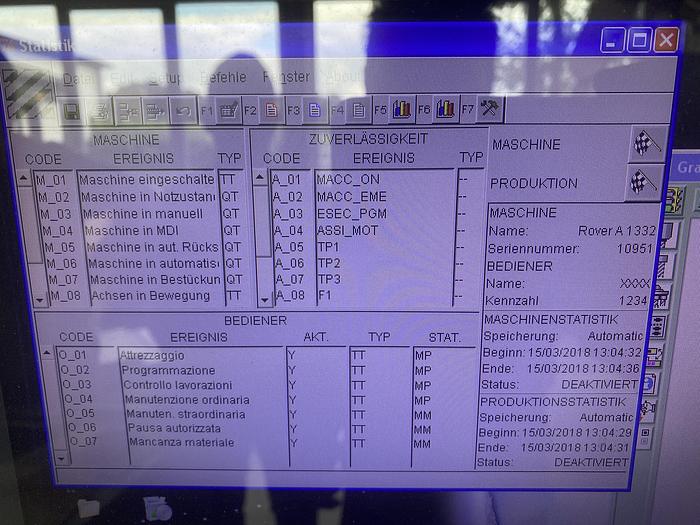

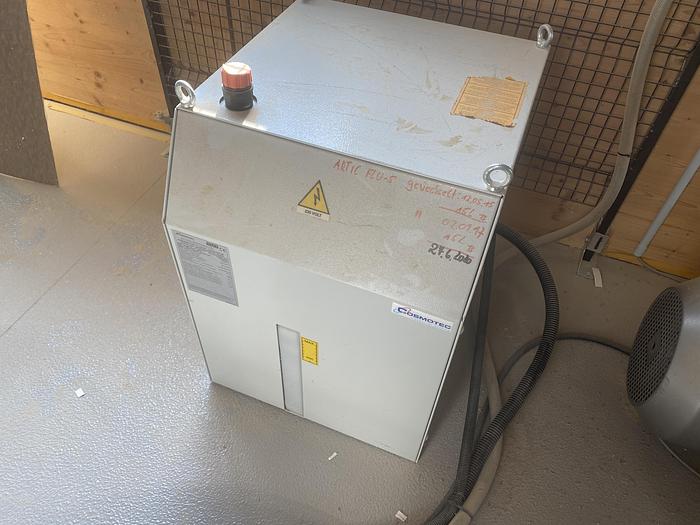

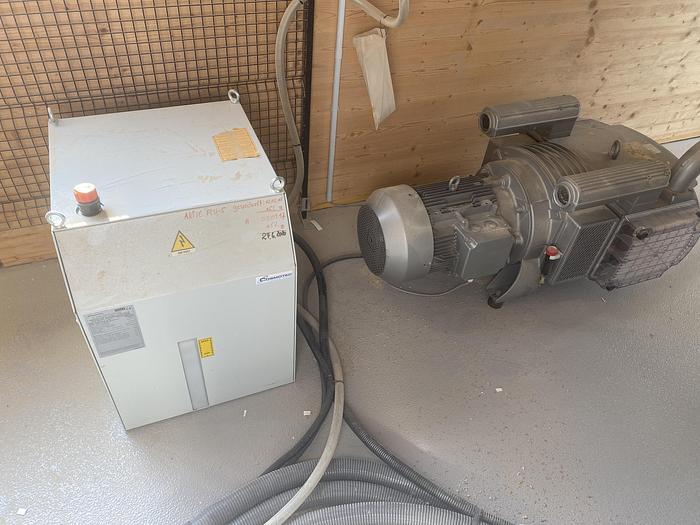

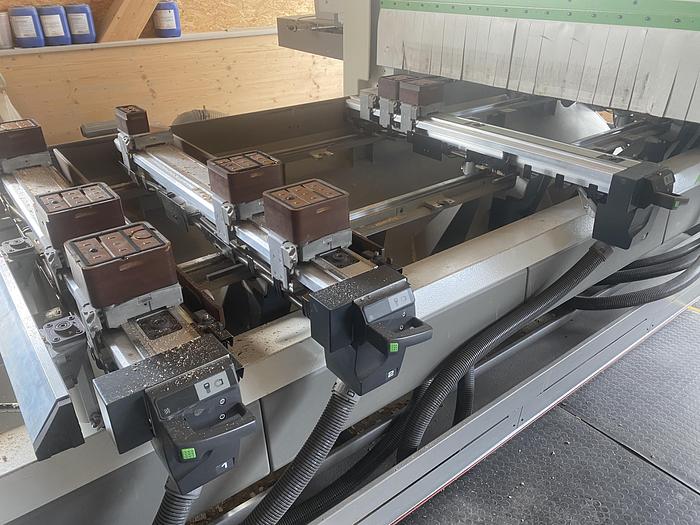

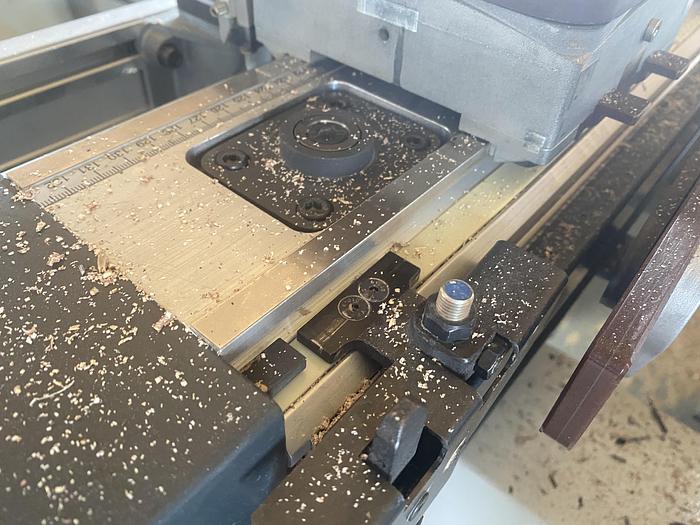

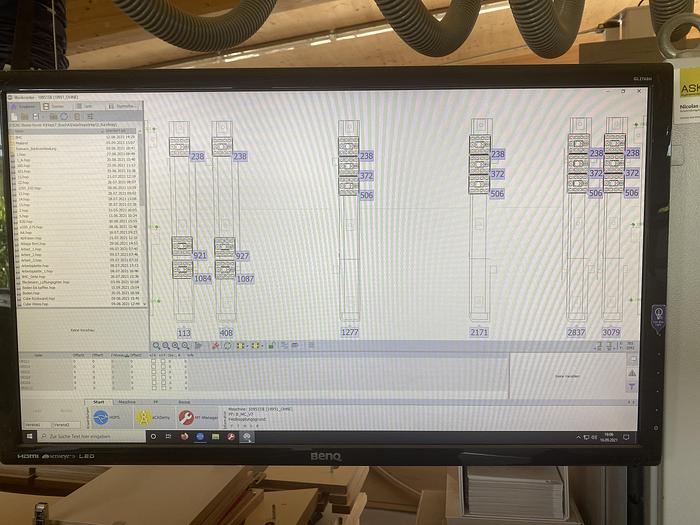

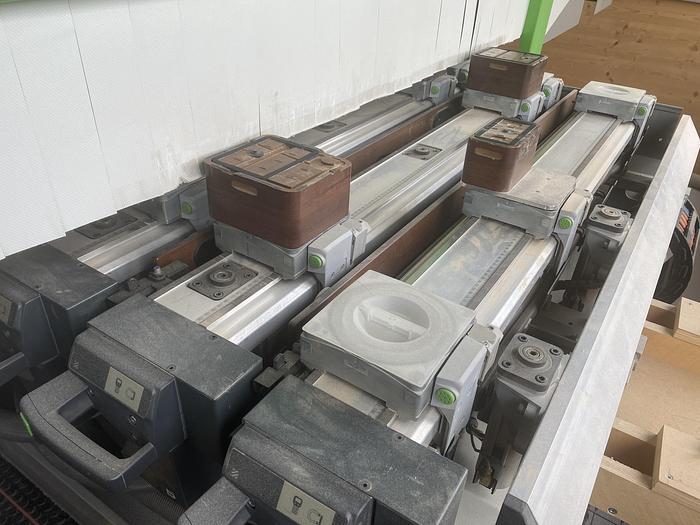

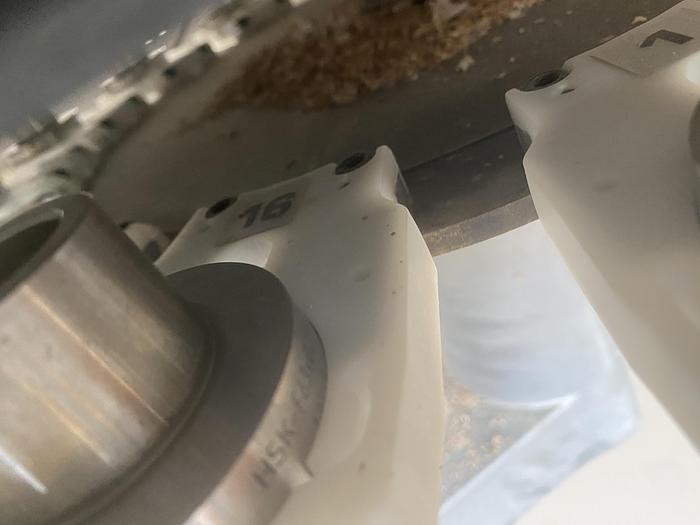

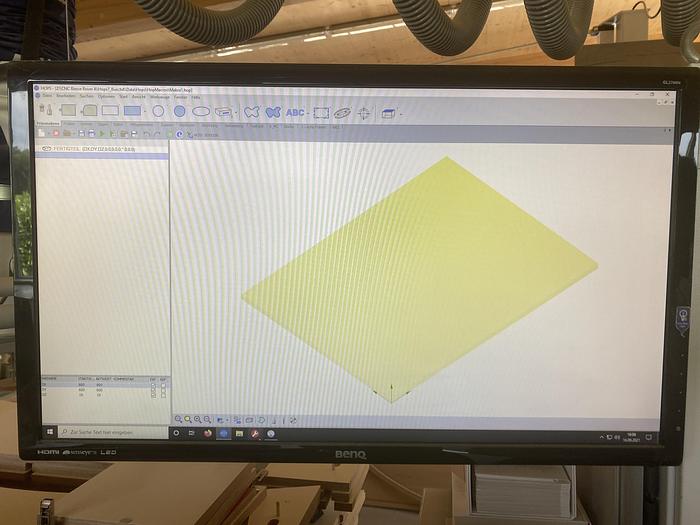

Numerical control with bSolid software Working field in X mm 3280 Working field in Y mm 1320 Z axis travel 250 mm 6 adjustable panel support bars N ° 3 adjustable suction cups for each bar N ° 4 Pneumatic bakelite bars for lifting the panel N ° 1 vertical electrospindle with 5 axes, automatic tool change, 13 KW motor, liquid cooling, with flange for receiving aggregates Automatic tool change with 21 rear positions Type cones HSK F 63 N ° 1 blade integrated in the boring head N ° 6 independent spindles for vertical boring in "X" direction N ° 4 independent spindles for vertical boring in "Y" direction N ° 4 spindles for horizontal boring in "X" direction N ° 2 spindles for horizontal boring in "Y" direction Front protection and safety system with carpets Perimeter protection grids Liquid cooling system Automatic lubrication system N ° 1 vacuum pump
